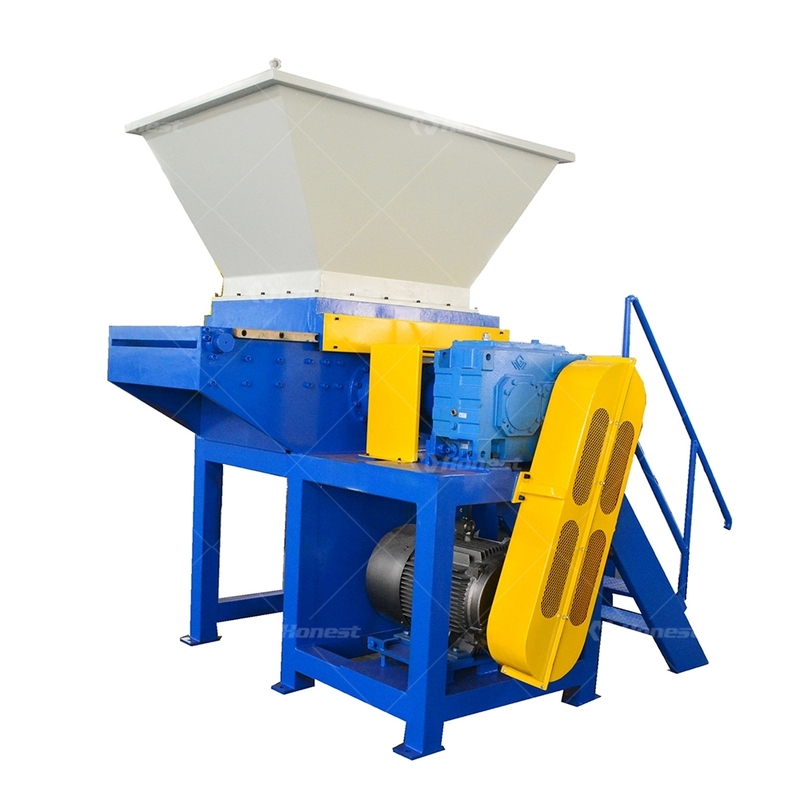

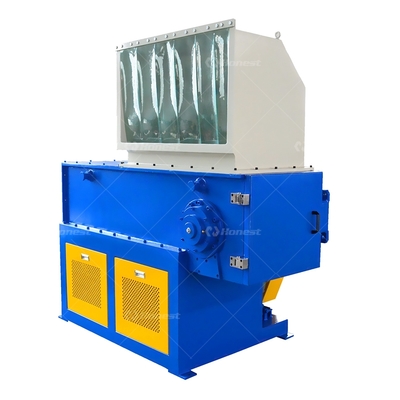

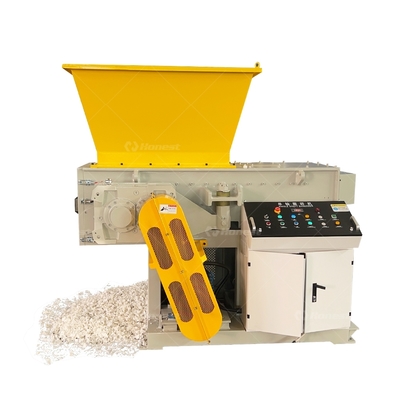

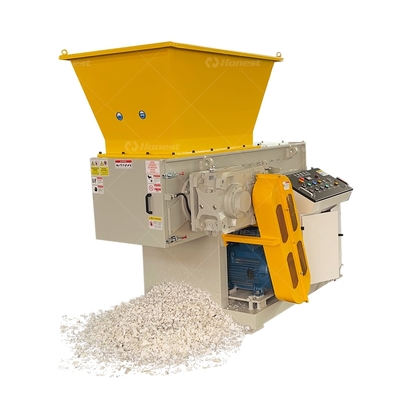

Name: Single Shaft Shredder Shreds a Variety of Hard Plastics to Increase Efficiency
Brand: Henan Honest Heavy Machinery Co., Ltd.
Availability: InStock

Home Products Single Shaft Shredder

Single Shaft Shredder Shreds a Variety of Hard Plastics to Increase Efficiency

Product Details:

Place of Origin:	Henan, China
Brand Name:	Honest

Contact Now

Detailed Product Description

Plastic Type:	PVC, PET, ABS, PP/PE, PE, PP, PC, PA, PS	Use:	Waste Plastic Crusher
Shaft Design:	Single Phase	Voltage:	220V 380V 400V
Dimension(lwh):	26009001850	Power (kw):	22
Weight (t):	2	Warranty:	1 Year
Key Selling Points:	Automatic	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, Pump, PLC
Product Name:	Single Shaft Shredder	Application:	Crush Different Materials
Type:	Full Automatic Double Shaft	Condition:	New
Blades Material:	9CrSi/D2/SKD-11	Raw Material:	Scrap Plastic Material
Color:	Customized	Certificate:	ISO CE
Voltage:	380V/50Hz/3 Phase Or Customized	Keyword:	Shredder Machine

Application

1.Metal: aluminum can bundle, steel drum, car shell, color steel tile, bicycle, copper aluminum radiator, oil filter, scrap wires, cables, aluminum composite plastic panel, steel wire rope, gas tank, iron scrap, zip-top can, engine case, paint bucket, etc.

2.Plastic: plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc.

3.Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste, etc.

4.Wood: wood mattress, wood furniture, wood pallet, scrap timber, sawdust chipboard, composite board, wooden door, forklift pallet, wood board, wood template, wooden case, wooden box, wood sofa, wood bed, etc.

5.Paper: scrap paper and cartons, including scrap books, carton board, carton box, packaging box, waste newspaper, office paper, printing paper, paperboard, etc.

6.Waste household appliances: TV, washing machine, refrigerator shell etc.

7. Pipes: large pipes, pipe fittings, PE pipes etc.

8.Scrap tires: car tires, truck tires etc.

9.All kinds of Kitchen waste, domestic waste, rdf derivatives, medical waste,garden waste etc.

Technical Parameters

Model	HNDM600	HNDM1000	HNDM1200	HNDM1500	HNDM1900	HNDM2600
Motor Power	11*2 Kw	30*2 Kw	45*2 Kw	55*2 Kw	90*2 Kw	160*2 Kw
Capacity	2-6 T/H	3-8 T/H	5-10 T/H	8-18 T/H	10-25 T/H	25-60 T/H
Blade Number	34 Pieces	34 Pieces	30 Pieces	38 Pieces	34 Pieces	25 Pieces
Input Opening Size(mm)	950*700	1200*1000	1500*1200	2000*1500	2500*2000	3000*2500
Dimension L/W/H(m)	2.60.91.8	3.61.52.2	4.61.82.6	5.22.02.6	6.22.52.8	8.24.04.3
Weight	3T	5 T	8 T	13 T	18 T	36 T

Working Principle

This equipment is mainly composed of feed hopper,double shaft cutting system, Plc control system, discharging conveyor system and power system, etc.
1.Feed hopper: Put the material to be crushed, so as to prevent the material from splashing out.
2.Double shaft cutting system:Using different blades according customers' material.
3.Power system:We choose famous brands of motor in China, can also be configured according to customer needs.

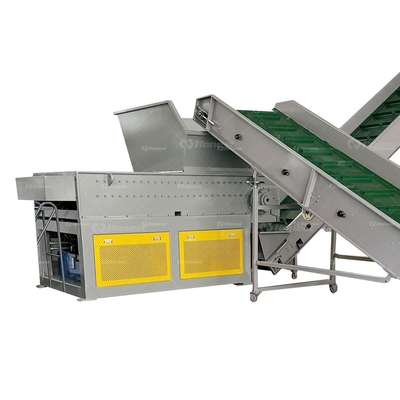

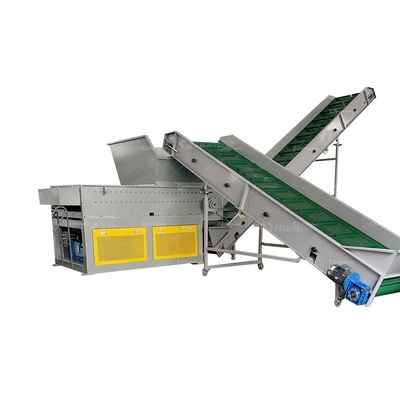

4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.

Blade quality include 9CrSi, Cr12MoV, SKD- II, D2 etc. Can be customized according to customer.

Shred chamber plate is very thick, can resist high torque.

Button control, easy to operate, set up, stop, reverse, overload protection and other functions.

We design single or multi-hooks of blades with different thickness for different materials.

The bearing seat adopts the split type, easy to maintain and replace the blade.

Feed hopper can be customized according to the customer site, more suitable for mass production on the production line.

Features

1. The shredder machine with big feed hopper allows us can put the big material.
2. The special design rotary knife work very efficiency.
3. The shredder machine is control by PLC control system; the blade can reverse to protect the machine and close automatically.
4. The knife is made with special alloy steel,through high temperature treatment,it can work for long life time.
5. Knife is very easy to change.
6. The machine is equipped with an extra large pulley to increase the inertia of the crusher, which can save energy and increase
the crushing capacity.

Why Choose Us

1.Our customers from over 30 countries and regions，the quality of the machine is widely praised

2.We have quick after-sales service response mechanism, 7*24 hours VIP customer service

3.There is a perfect quality inspection mechanism before the delivery of the machine. We will ship the machine only when the machine test is correct or the customer's factory inspection is correct, and the test video will be issued

4.Perfect after-sales service, if necessary, we will send engineers to install and train within one week after the machine arrives
at the customer's site
