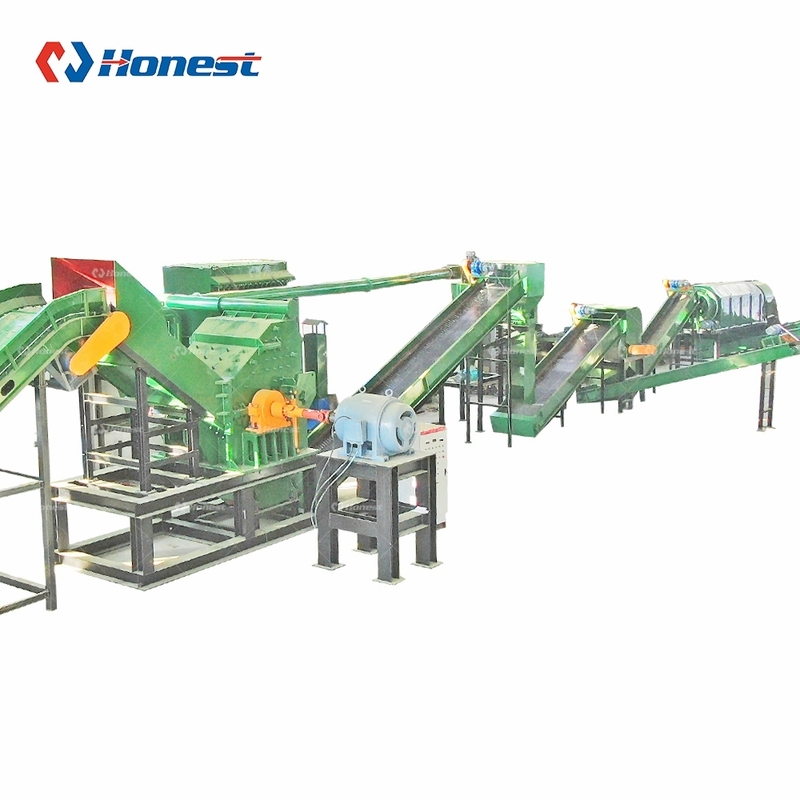

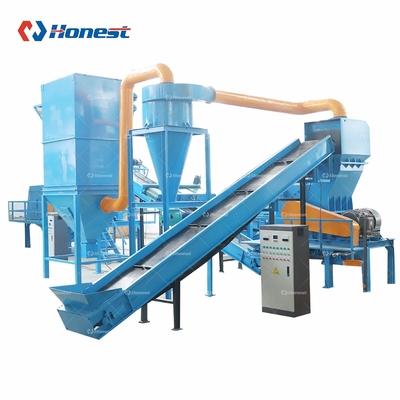

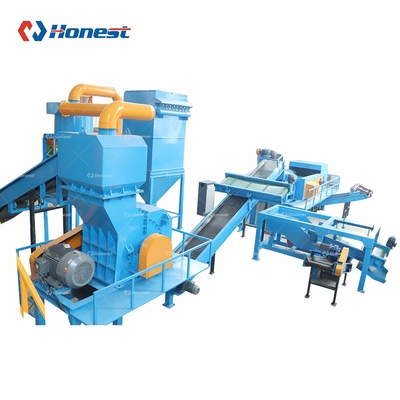

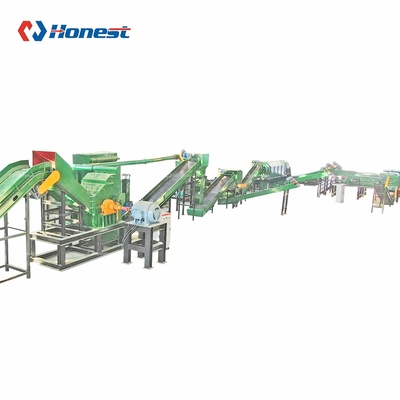

Name: All-in-one Scrap Steel Shredding and Recycling Machine Steel Scrap Crushing and Separation System
Brand: Henan Honest Heavy Machinery Co., Ltd.
Availability: InStock

Home Products Scraps Metal Recycling Sorting Line

All-in-one Scrap Steel Shredding and Recycling Machine Steel Scrap Crushing and Separation System

Product Details:

Place of Origin:	Henan, China
Brand Name:	Honest

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Gear	Warranty:	1 Year
Power (kw):	144	Weight (kg):	21000
Key Selling Points:	Automatic, Energy Saving, High Safety Level, Competitive Price	Capacity:	900-1100kg/day, Customizable
Product Name:	Scrap Metal Shredding And Sorting Production Line	Application:	Scrap Metal Recycling
Final Product:	Metals And Non-metals	Keyword:	Metals And Non-metals
Voltage:	Can Be Customized According To The Customer's Country	Type:	Fully Automatic
Used For:	Scrap Steel, Iron, Aluminum, Copper And Other Scrap Metal Materials	Feature:	It Is Specially Used For Processing Various Scrap Metals
Transportation:	Full Container Transport

Waste Steel Tailings Scraps Metal Recycling and Sorting Line

Technical Parameters

Equipment Name	Power
2000 Double Shaft Shredder (Soft Start + H13 Blade)	132kW+132kW=264kW
630 Hammer Crusher (Water Cooling, Vibration Pad)	630kW
Vibrating Screen	2.2kW
Rotary Screen (Dust Removing)	22kW
Vibrating Screen	2.2kW
Drum Magnetic Separator 100%	3kW
Rotary Screen	22kW
Eddy Current Separator	5kWx3=15kW
Pulse Dust Collector (Spark Arrester & Cyclone)	30kW
Total Power: 1072kW
Footprint: 80m x24m x6m

APPLICATION

This recycling line is suitable for processing a wide variety of scrap metal materials: Scrap Vehicles & Appliances Car bodies, tinplate, household appliances, bicycles, truck parts, cans, and steel structures (≤6mm thick).

Scrap Steel & lron

Scrap steel tailings,mixed scrap iron/steel, shavings, old drums, color steel tiles, thin metal sheets, and construction scraps.

Copper Scrap Brass, red copper, copper sheets/shavings, and copper-containing components like cables, motorstransformers,and panels 87%.

Aluminum Scrap Aluminum sheets, wires, ingots, alloy doors/windows, and aluminum-containing machinery Stainless Steel Scrap Offcuts, sheets, utensils, and decorative or structural stainless steel waste.

Non-Ferrous & Precious Metals Lead, zinc, tin, molybdenum, solder, rare and precious metals, and other valuable raw materials.

Final Materials

Through processes such as crushing and separation, these materials can be effectively sorted into iron.copper, aluminum, and non-metallic components, significantly improving recycling efficiency and resource utilization. Below are some examples of the output materials.

Process Description

1. Material Feeding: The raw materials are loaded onto a chain-type conveyor, which transports them steadily into the shredder.

2. Primary Shredding: The shredder breaks the materials into large pieces, making them suitable for further processing.

3. Secondary Crushing: The shredded materials are then transferred via conveyor to a

hammer crusher.where they are crushed into smaller. uniform particles.

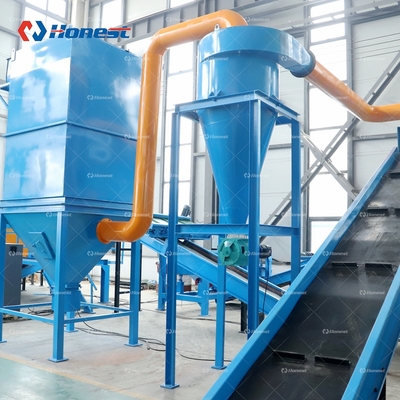

4. Dust Collection: A dust collection system operates simultaneously to capture dust generated during the crushing process, ensuring a clean and environmentally friendly operation.

5. Magnetic Separation: The crushed material passes through a magnetic separator, which removes ferrous metals (iron) from the material stream.

6. Rotary screen: The remaining non-ferrous and plastic mixture is conveyed into a rotary screen, which separates the material into three different size categories, each discharged

from a separate outlet.

7. Eddy Current Separation: Each of the three size-based outputs is fed into a dedicated

eddy current separator, which effectively separates non-ferrous metals (like aluminum and copper) from plastic.

Product Technology

Detailed Structures

Product Fature

Customer Site

Customer Feedback

Company Show

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
