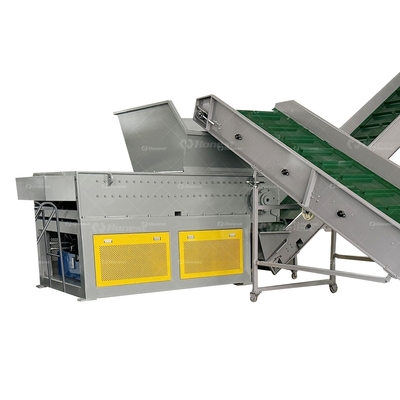

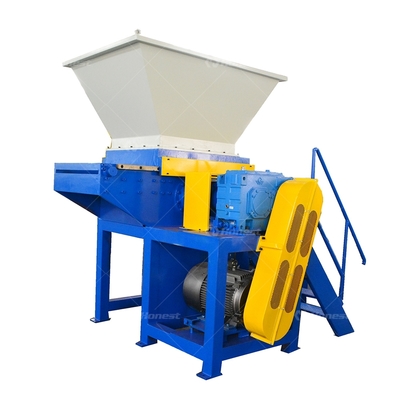

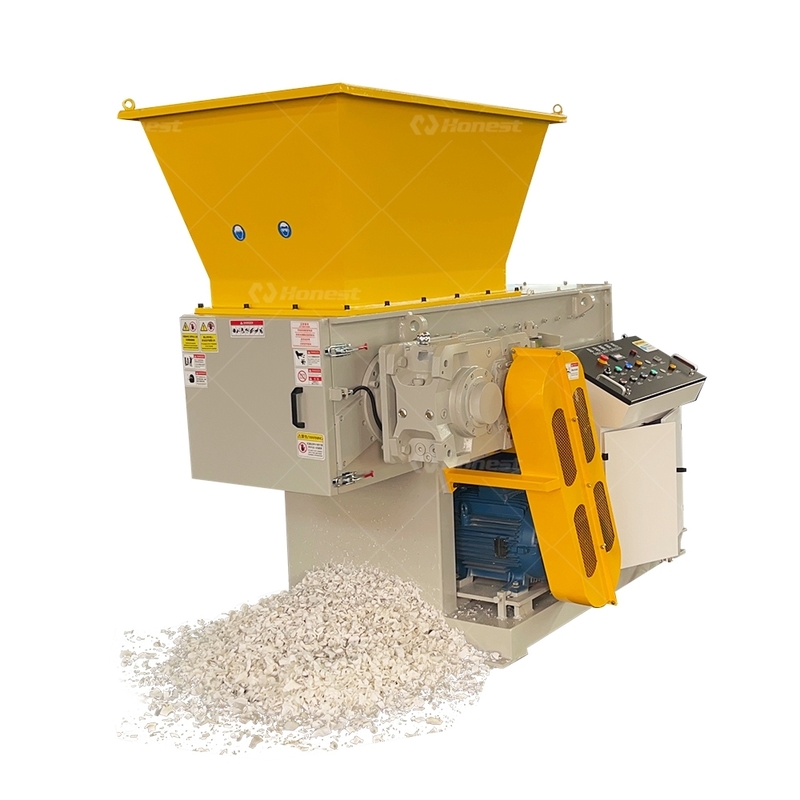

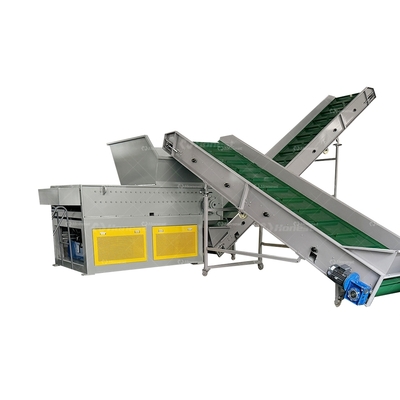

Name: Electric Single Shaft Shredder Machine for Rubber Tires Paper and Cardboard Crushing
Brand: Henan Honest Heavy Machinery Co., Ltd.
Availability: InStock

Home Products Single Shaft Shredder

Electric Single Shaft Shredder Machine for Rubber Tires Paper and Cardboard Crushing

Product Details:

Place of Origin:	Henan, China
Brand Name:	HONEST

Contact Now

Detailed Product Description

Plastic Type:	PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS, Metal	Use:	Waste Metals Crushing
Shaft Design:	Single Phase	Voltage:	380V/50Hz/3Phase
Dimension(lwh):	300020002200mm	Power (kw):	22
Weight (t):	2.8	Warranty:	1 Year
Key Selling Points:	Multifunctional	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor
Cut Type:	Cross Cut	Product Name:	Waste Fish Net Non-woven Fabric Cotton Shredding Machine Shredder
Keyword:	Wood Pallet Plastic Recycling Machine Single Shaft Shredder	Application:	Waste Plastic Lumps Shredding Crushing Recycling
Color:	Client's Requirements	Blades Material:	9CrSi/D2/SKD-11
Raw Material:	Steel Drum, Zip-top Can, And Other	Crushing Material:	Waste Plastic Lumps Shredding Crushing Recycling
Usage:	Metal Shredder Machine	Type:	Shredder Machine
Function:	Plastic Cutter Grinder Crusher Shredder Machine

Professional Multi-Purpose Single Shaft Shredder

Technical Parameters

Model	HN-S600	HN-S800	HN-S1000	HN-S1200	HN-S1500
Capacity (kg/h)	600	800	1000	1200	1500
Rotor-knives (pcs)	26+4	46+6	49+4	64+4	90+4
Counter-knives(pcs)	4	4	4	4	6
Blade Material	Cr12MoV/SKDII	Cr12MoV/SKDII	Cr12MoV/SKDII	Cr12MoV/SKDII	Cr12MoV/SKDII
Rotor Diameter(mm)	240	400	400	500	500
Rotor Speed(r/min)	45-90	45-90	45-90	55-75	55-75
Cutting Chamber(mm)	600*600	810*800	1000*1000	1200*1100	1500*1200
Hydraulic Power(kw)	2.2	3	4	5.5	7.5
Cylinder Stroke(mm)	600	800	1000	1000	1200
Machine Size (mm)	178014001800	240016802000	300020002200	350023002200	360030002400
Weight(kg)	2800	4000	5500	7000	9000

TIPS: The above shredder is our standard configuration.For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request.

Suitable Raw Materials

lt is mainly used for shredding and recycling various thick-wall waste materials and leftover materials in

the plastic industry. It can effectively shred and crush large materials ( such as extra-thick head materials, nozzle materials, gate materials, large plastic pipe fittings, large-diameter thick-wall PE pipes, PE head materials, plastic packaging barrels, large bundles of plastic films, large bundles of woven bags, rolled films, paper, fibers, plastic boxes, plastic garbage cans, TV casings, computer shells,printer housings,copper wires, forklift pallets, plastic clamping plates, plastic turn over boxes, etc. ) and is suitable for crushing and recycling various materials of plastic,rubber and wood. Shredded particles can be small to 20mm according to different needs.

Product Advantage

Advantage

1.The main shaft is driven by gear reducer, running smoothly, with low noise and largetorque.

2.The material of the knife: Cr12MoV(Japanese brand SKD-11, American brand D2); themoving knife uses the "V" or "one" word installation way to make the knife cut evenly,reduce energy consumption and reduce noise in the whole work; each knife has 4 cuttingedges, and then rotates 90 degrees after wear; each set has 2 cutting edges. After wearing, it can be rotated for 180 degrees to continue to use; the blade on the rotor canbe disassembled for easy cleaning, maintenance.

3. We can supply different rollers according to different material. Choosing the right rollerscan improve machine performance and production efficiency. We can supply the followingthree rollers: High performance roller, hard material roller and film roller.

4. We have designed three different knives holders according to the material, such aswelded knife holders, assembled knife holders and CNC cutting knife holders.

Main Structures

1.Shaft, moving blades, fixed blades, reducer, motors, feeding hopper, discharge port, electric control cabinet,control panel,screen, roller, knives holder, ect.

2.After shreddering, the dimension of most large plastic or other material will reduce 30%, some materialdimenison after shreddering can up to 50%. (We have arranged many videos.Please contact us freely if you need.)

Single shaft shredder consists of aknife disc and a static knife to complete shredding material.

Cutter iscomposed of a base shaft and severalshape quadrilateral knife block.

The blade can be used in four directions.Blade quality have 9CrSi,C12MoV,SKD-ll，D2 etc. Can be customizedaccording to customer.

The screen can be changed quickly, theaperture of the mesh is able to controlthe size of the output material.Special screen can be designedaccording to the type of your rawmaterials.

Hydraulic-driven pusher: The hydraulic-driven pusher is equippedwith an adjustable guide block and adoptsadvanced sealing design.Ash chute - remove the dust from thepusher in the shredding process so as toprotect the hydraulic system.

Double speed hydraulic system: Push the material box high speed back,maximize the output. The built-in oil/air cooling device is ableto meet the needs of continuous production.

PLC Intelligent control system : When the equipment is overloaded, theknife roller will turn and reverse automatically, and the equipment willstop working automatically when there isno feeding materials.

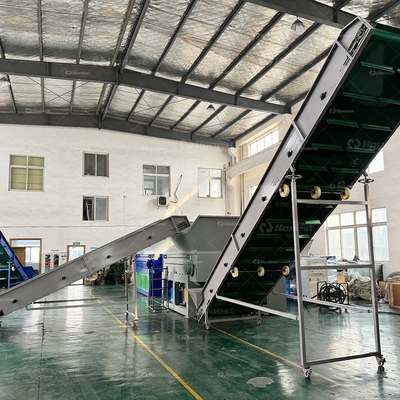

Customer Site

Why Choose Us

Delivery

Company Show

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
