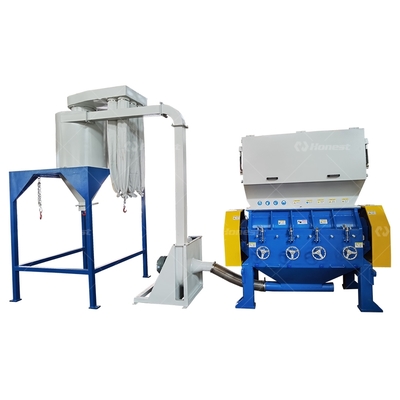

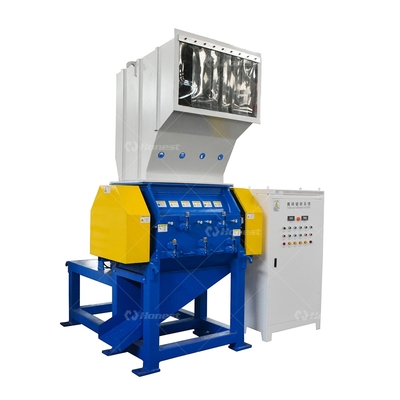

Name: High Efficiency Plastic Crusher Machine for Bottle Film and Hard Plastics Recycling Plant
Brand: Henan Honest Heavy Machinery Co., Ltd.
Availability: InStock

Home Products Knife Crusher

High Efficiency Plastic Crusher Machine for Bottle Film and Hard Plastics Recycling Plant

Product Details:

Place of Origin:	Henan, China
Brand Name:	HONEST

Contact Now

Detailed Product Description

Plastic Type:	PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS, Metal	Use:	Waste Metals Crushing
Shaft Design:	Double	Voltage:	380V/50Hz/3Phase
Dimension(lwh):	115015001600mm	Power (kw):	15
Weight (t):	2.3	Warranty:	1 Year
Key Selling Points:	Multifunctional	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor
Product Name:	New Design High Speed Small Plastic Grinder Pvc Sheet Pipe Crusher	Keyword:	Wood Pallet Plastic Recycling Machine Single Shaft Shredder
Application:	Waste Plastic Lumps Shredding Crushing Recycling	Color:	Client's Requirements
Blades Material:	9CrSi/D2/SKD-11	Raw Material:	Steel Drum, Zip-top Can, And Other
Crushing Material:	Waste Plastic Lumps Shredding Crushing Recycling	Usage:	Metal Shredder Machine
Type:	Shredder Machine	Function:	Plastic Cutter Grinder Crusher Shredder Machine

Waste Plastic Recycling Machine Plastic Bottle Crusher Grinding Machine Plastic Film Crushing Machine

Suitable Raw Materials

1.All kinds of hollow containers: plastic beverage cans, plastic buckets,iron drums, packing boxes,packing drums. 2.Used household appliances: TV, washing machine, refrigerator shell.3.Pipe material: large pipe, pipe fitting and PE pipe. 4. Used templates: wooden pallets, plastic pallets and forklifts.5. Used tires: car tires, truck tires. 6.Scrap metal: automobile housing, aluminum alloy, scrap cast aluminum parts, engine housing, lead and steel plates with thickness below 5mm. 7.Cooking garbage, living garbage, RDF derivative,medical waste, biological orange pole,garden garbage. 8. Glue head material, paper mill rope.

Main Structures

1.Shaft,moving blades, fixed blades, reducer, motors, feeding hopper, discharge port, electriccontrol cabinet, control panel, screen, roller, knives holder, ect.

2.After shreddering, the dimension of most large plastic or other material will reduce 30%,some material dimenison after shreddering can up to 50%. (We have arranged many videos. Please contact us freely if you need.)

Technical Parameters

Our crusher has several models, and the following are the conventional models. For special bar-rels and pipes, we have special customized models. Please do not hesitate to contact us.

Model	600	800	1000	1200
Feed inlet size	600*320mm	820*600mm	1020*650mm	1200*1000mm
Rotating diameter	φ270	φ420	φ420	φ700
Power	15KW 20HP	42037kw	45KW 60IP	55Kw
Rotation Speed	380 r/min	480 r/min	480 r/min	380 r/min
Voltage	3380V50HZ	3380V50HZ	3380V50HZ	3380V50HZ
Machine Size	115015001600mm	160016802080mm	200018002400mm	300018004000mm
Weight	660kg	2300kg	3500kg	6000kg

Our crusher has many models.According to material size and discharge size.Recommend different equipment models.Please contact us for details.

Customer Site

Company Show

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
