Product Details:
Place of Origin: Henan, China
Brand Name: HONEST
Contact Now
Detailed Product Description
Plastic Type: PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS Use: Scrap Metal Shredding
Shaft Design: Double Voltage: Customerized
Dimension(l*w*h): 3.6*1.5*2.2 M Power (kw): 37
Weight (t): 5 Warranty: 1 Year
Key Selling Points: Multifunctional Machinery Test Report: Provided
Video Outgoing-inspection: Provided Core Components: Motor
Name: Car Shredding Machine Scrap Metal Shredder Machine Car Body Shredder Keyword: Double Shaft Shredder
Usage: Waste Raw Material Shredding Color: Client's Requirements
Final Product: 2-10cm Raw Material: All Kinds Of Solid Waste
Model: SZS-600/800/1000/1200/1500/2000 Type: Double Shaft
Blade: Cr12Mov Speed: 10-12rpm

High Efficiency Sold Waste Processing Heavy Hydraulic Double Shaft Shredder Machine
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 0
Technical Parameters
Item
Specification
Motor Power
110kW/ motor/2 sets
Cutter Disc Diameter
600mm x100mm
Number of Blades
20 pieces
Main Shaft Speed
1-8 r/pm
Feed Inlet Size
3000mmx2000mm
Overall Dimension(LxWxH)
5500mmx2100mm x3500mm
Hydraulic Unit Dimension(LxWxH)
3100mm x2000mmx3000mm
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 2
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 4


Application

1.Metal: aluminum can bundle, steel drum, car shell, color steel tile, bicycle, copper aluminum radiator, oil filter, scrap wires, cables, aluminum composite plastic panel, steel wire rope, gas tank, iron scrap, zip-top can, engine case, paint bucket, etc.

2.Plastic: plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc.

3.Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste, etc.

4.Wood: wood mattress, wood furniture, wood pallet, scrap timber, sawdust chipboard, composite board, wooden door, forklift pallet, wood board, wood template, wooden case, wooden box, wood sofa, wood bed, etc.

5.Paper: scrap paper and cartons, including scrap books, carton board, carton box, packaging box, waste newspaper, office paper, printing paper, paperboard, etc.

6.Waste household appliances: TV, washing machine, refrigerator shell etc.

7. Pipes: large pipes, pipe fittings, PE pipes etc.

8.Scrap tires: car tires, truck tires etc.

9.All kinds of Kitchen waste, domestic waste, rdf derivatives,garden waste etc.
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 6


Working Principle


This equipment is mainly composed of feed hopper,double shaft cutting system, Plc control system, discharging conveyor system and power system, etc.
1.Feed hopper: Put the material to be crushed, so as to prevent the material from splashing out.
2.Double shaft cutting system:Using different blades according customers' material.
3.Power system:We choose famous brands of motor in China, can also be configured according to customer needs.
4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.

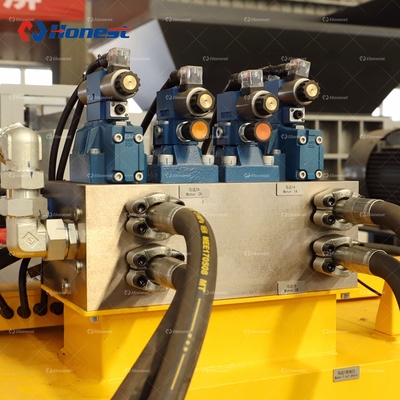

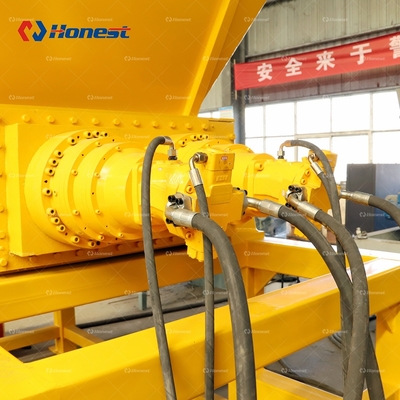

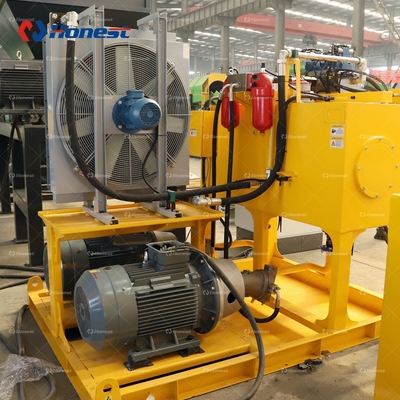

Detailed Structures
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 8
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 10
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 12


Features

1. The shredder machine with big feed hopper allows us can put the big material.
2. The special design rotary knife work very efficiency.
3. The shredder machine is control by PLC control system; the blade can reverse to protect the machine and close automatically.
4. The knife is made with special alloy steel,through high temperature treatment,it can work for long life time.
5. Knife is very easy to change.
6. The machine is equipped with an extra large pulley to increase the inertia of the crusher, which can save energy and increase the crushing capacity.
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 14
Customer Site
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 16
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 18
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 20
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 22
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 24
Why Choose Us
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 26
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 28
Customer Feedback
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 30
Company Show
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 32
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 34
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 36
Hydraulic Twin Shaft Shredder for Efficient Scrap Metal Recycling Hydraulic Metal Shredder for Sale 38
