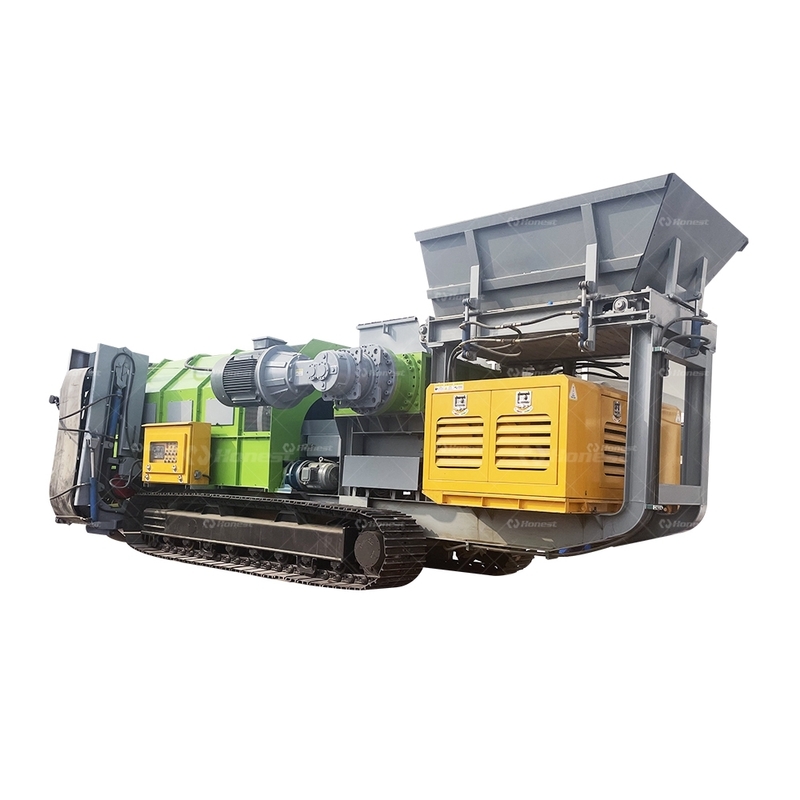

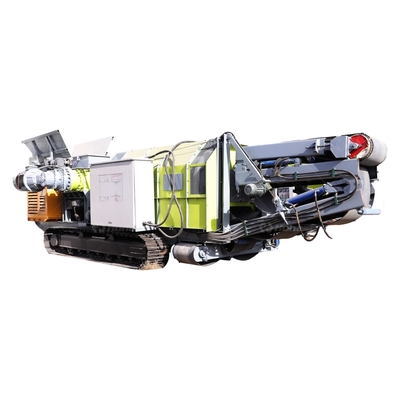

Name: Portable Track Shredder Crawler Shredder Machine Mobile Scrap Car Shredder Recycling Project
Brand: Henan Honest Heavy Machinery Co., Ltd.
Availability: InStock

Home Products Mobile Double Shaft Shredder

Portable Track Shredder Crawler Shredder Machine Mobile Scrap Car Shredder Recycling Project

Product Details:

Place of Origin:	Henan, China
Brand Name:	HONEST

Contact Now

Detailed Product Description

Plastic Type:	PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS	Use:	Scrap Metal Shredding
Shaft Design:	Double	Voltage:	Customerized
Dimension(lwh):	3.61.52.2 M	Power (kw):	110
Weight (t):	25	Warranty:	1 Year
Key Selling Points:	Multifunctional	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor
Name:	Car Shredding Machine Scrap Metal Shredder Machine Car Body Shredder	Keyword:	Double Shaft Shredder
Usage:	Waste Raw Material Shredding	Color:	Client's Requirements
Final Product:	2-10cm	Raw Material:	All Kinds Of Solid Waste
Model:	SZS-600/800/1000/1200/1500/2000	Type:	Double Shaft
Blade:	9CrSi SKD-11	Speed:	10-12rpm

Multifunction Industrial Mobile Track Double Shaft Shredder

Technical Parameters

Model	HNSS1600	HNSS2000
Blade Diameter(mm)	530	600
Blade Thickness(mm)	100	100
Blade Number	16 Pieces	20 Pieces
Spindle Diameter(mm)	270	310
Power（KW）	75*2	110*2
Input Opening Size(mm)	250020001400	300021001500
Dimension L/W/H(mm)	480027003700	560030004000

Application

1.Metal: aluminum can bundle, steel drum, car shell, color steel tile, bicycle, copper aluminum radiator, oil filter, scrap wires, cables, aluminum composite plastic panel, steel wire rope, gas tank, iron scrap, zip-top can, engine case, paint bucket, etc.

2.Plastic: plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc.

3.Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste, etc.

4.Wood: wood mattress, wood furniture, wood pallet, scrap timber, sawdust chipboard, composite board, wooden door, forklift pallet, wood board, wood template, wooden case, wooden box, wood sofa, wood bed, etc.

5.Paper: scrap paper and cartons, including scrap books, carton board, carton box, packaging box, waste newspaper, office paper, printing paper, paperboard, etc.

6.Waste household appliances: TV, washing machine, refrigerator shell etc.

7. Pipes: large pipes, pipe fittings, PE pipes etc.

8.Scrap tires: car tires, truck tires etc.

9.All kinds of Kitchen waste, domestic waste, rdf derivatives,garden waste etc.

Working Principle

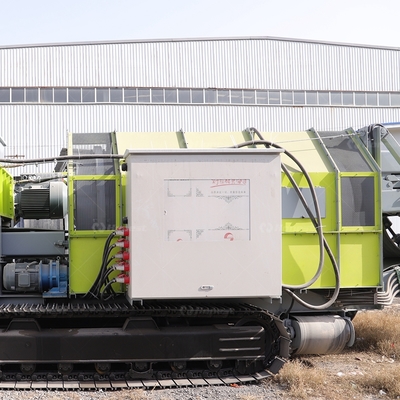

This equipment is mainly composed of feed hopper,double shaft cutting system, Plc control system, discharging conveyor system and power system, etc.
1.Feed hopper: Put the material to be crushed, so as to prevent the material from splashing out.

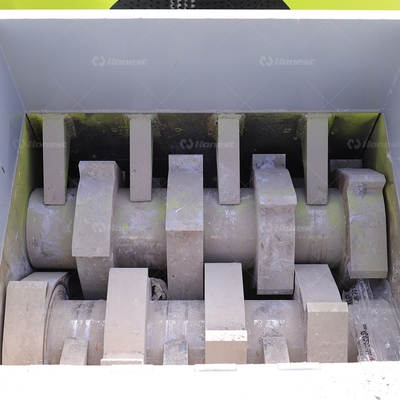

2.Double shaft cutting system:Using different blades according customers' material.

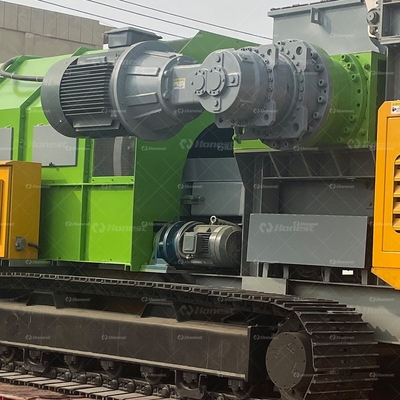

3.Power system:We choose famous brands of motor in China, can also be configured according to customer needs.

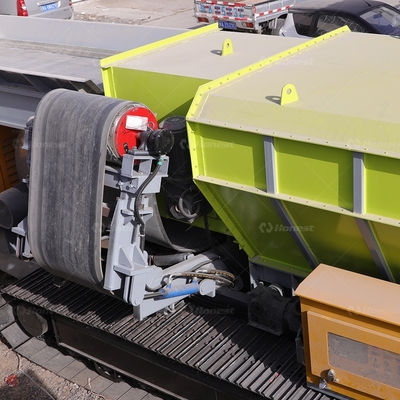

4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.

Features

1. The shredder machine with big feed hopper allows us can put the big material.
2. The special design rotary knife work very efficiency.
3. The shredder machine is control by PLC control system; the blade can reverse to protect the machine and close automatically.
4. The knife is made with special alloy steel,through high temperature treatment,it can work for long life time.
5. Knife is very easy to change.
6. The machine is equipped with an extra large pulley to increase the inertia of the crusher, which can save energy and increase the crushing capacity.
