Name: Scrap Metal / Food Waste / Steel Iron Filings/ Hydraulic Car Bicycle / Aluminum Engine Block Straw Double Shaft Shredder
Brand: Henan Honest Heavy Machinery Co., Ltd.
Availability: InStock

Home Products Metal Shredder

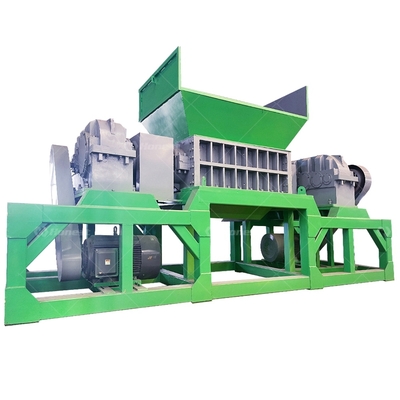

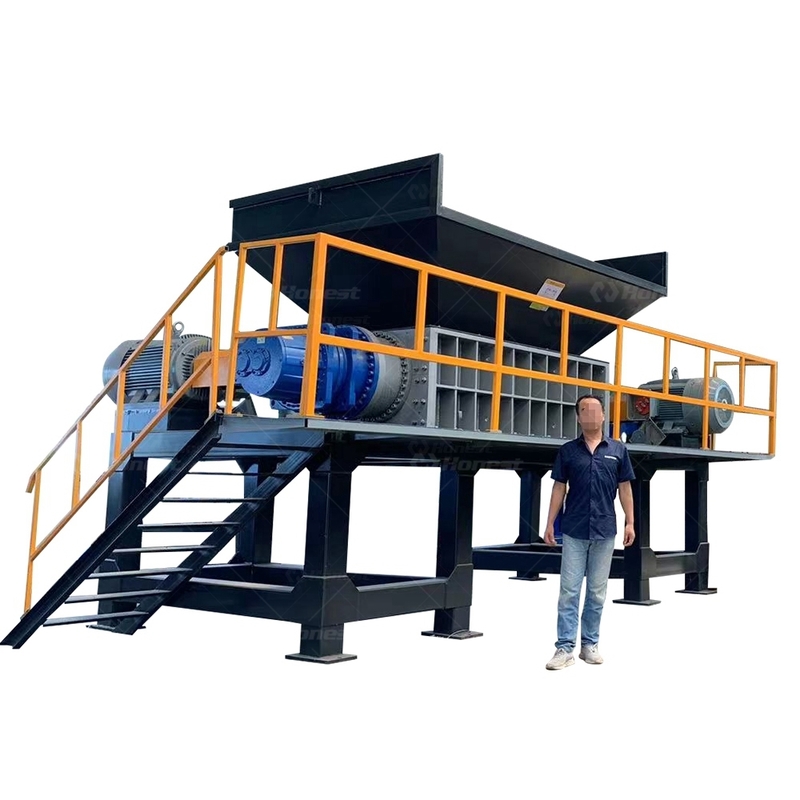

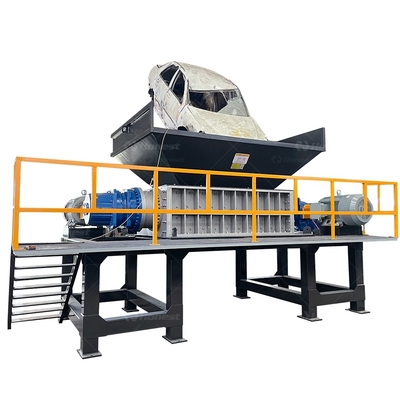

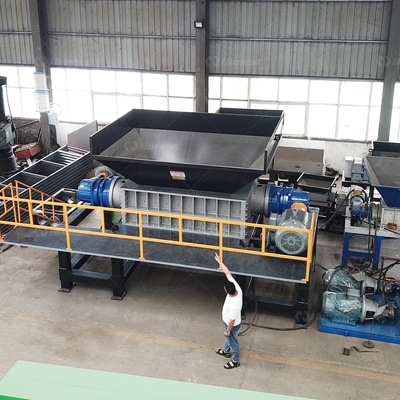

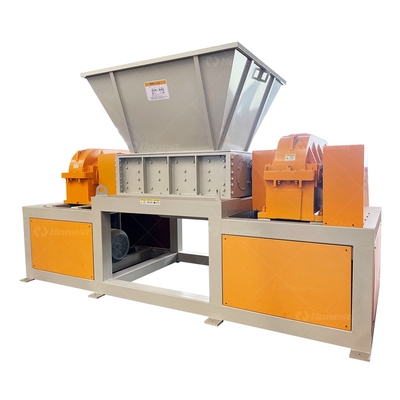

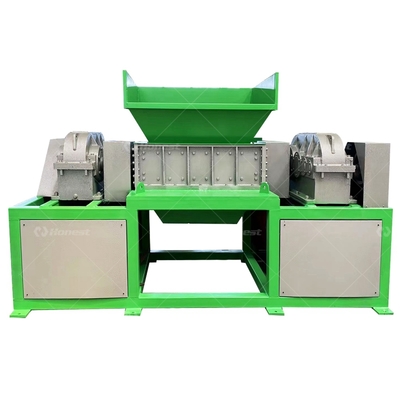

Scrap Metal / Food Waste / Steel Iron Filings/ Hydraulic Car Bicycle / Aluminum Engine Block Straw Double Shaft Shredder

Product Details:

Place of Origin:	Henan, China
Brand Name:	Honest

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Motor	Warranty:	1 Year
Material / Metal Processed:	Stainless Steel	Power (kw):	110
Weight (kg):	10000	Key Selling Points:	Multifunctional
Operating Mode:	Automatic	Name:	Car Shredding Machine Scrap Metal Shredder Machine Car Body Shredder
Keyword:	Double Shaft Shredder	Usage:	Waste Raw Material Shredding
Color:	Client's Requirements	Final Product:	2-10cm
Raw Material:	All Kinds Of Solid Waste	Model:	SZS-600/800/1000/1200/1500/2000
Type:	Double Shaft	Blade:	9CrSi SKD-11
Speed:	10-12rpm

Application

1.Metal: aluminum can bundle, steel drum, car shell, color steel tile, bicycle, copper aluminum radiator, oil filter, scrap wires, cables, aluminum composite plastic panel, steel wire rope, gas tank, iron scrap, zip-top can, engine case, paint bucket, etc.

2.Plastic: plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc.

3.Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste, etc.

4.Wood: wood mattress, wood furniture, wood pallet, scrap timber, sawdust chipboard, composite board, wooden door, forklift pallet, wood board, wood template, wooden case, wooden box, wood sofa, wood bed, etc.

5.Paper: scrap paper and cartons, including scrap books, carton board, carton box, packaging box, waste newspaper, office paper, printing paper, paperboard, etc.

6.Waste household appliances: TV, washing machine, refrigerator shell etc.

7. Pipes: large pipes, pipe fittings, PE pipes etc.

8.Scrap tires: car tires, truck tires etc.

9.All kinds of Kitchen waste, domestic waste, rdf derivatives, medical waste,garden waste etc.

Technical Parameters

Model	HNDM600	HNDM1000	HNDM1200	HNDM1500	HNDM1900	HNDM2600
Motor Power	11*2 Kw	30*2 Kw	45*2 Kw	55*2 Kw	90*2 Kw	160*2 Kw
Capacity	400-500Kg/H	1-2 T/H	3-4 T/H	4-5 T/H	8-10 T/H	13-15 T/H
Blade Number	34 Pieces	34 Pieces	30 Pieces	38 Pieces	34 Pieces	25 Pieces
Input Opening Size(mm)	950*700	1200*1000	1500*1200	2000*1500	2500*2000	3000*2500
Dimension L/W/H(m)	2.60.91.8	3.61.52.2	4.61.82.6	5.22.02.6	6.22.52.8	8.24.04.3
Weight	3T	5 T	8 T	13 T	18 T	36 T

Working Principle

This equipment is mainly composed of feed hopper,double shaft cutting system, Plc control system, discharging conveyor system and power system, etc.
1.Feed hopper: Put the material to be crushed, so as to prevent the material from splashing out.
2.Double shaft cutting system:Using different blades according customers' material.
3.Power system:We choose famous brands of motor in China, can also be configured according to customer needs.
4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.

Blade quality include 9CrSi, Cr12MoV, SKD- II, D2 etc. Can be customized according to customer.

Shred chamber plate is very thick, can resist high torque.

Button control, easy to operate, set up, stop, reverse, overload protection and other functions.

We design single or multi-hooks of blades with different thickness for different materials.

The bearing seat adopts the split type, easy to maintain and replace the blade.

Feed hopper can be customized according to the customer site, more suitable for mass production on the production line.

Features

1. The shredder machine with big feed hopper allows to put big materials.

2. The special design rotary blades work very efficiently.

3. The shredder machine is controlled by PLC control system; the blade can reverse automatically to protect the machine when overload.

4. The bladeis made of special alloy steel, through high temperature treatment, long service life.

5. Bladeis very easy to change and blade changing videos can be provided.

6. The wiring diagram, installation drawing and foundation drawing can be provided for installation.

FAQ

Q: Can The Shredder Machine Be Used To Shred Different Materials?
A: Yes, we will design the shredder machine for you as per your materials.

Q: How to choose a suitable shredder?
A: Please tell us your raw material and the capacity you need, we will recommend you the most suitable shredder.

Q: What About The Machine Installation?
A: For the Professional Wood Pallet Shredder Machine installation, we will provide you the wiring diagram, installation drawing and technical support, normally you can finish by yourself; but if you really need our technician, we will send technician to your working site as required.

Q: How About The Spare Parts?
A: We provide spare parts at cost price permanently and will give you the spare parts list when you purchase machine.

Q: Will you test the shredder machine before delivery?
A: Yes, we will test every machine and production line before delivery, and send you the working video. You also can come to us for inspection before delivery.
